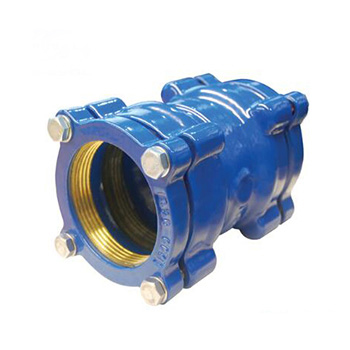

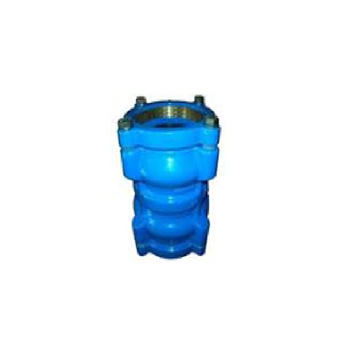

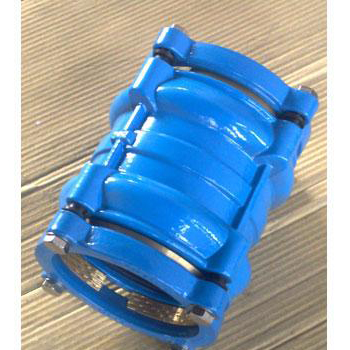

Restrained Coupling For PE
| a.details |
| 1)OD40mm-OD400mm |
| 2)Suit for joining with PE pipes |
| 3）Use：For air, water, sewer and gas pipelines |
| b.Material and coating |
| 1） End rings-ductile iron to BS2789 grade 420/12, 500/7 |
| 2） Sleeve-ductile iron to BS2789 grade 420/12,500/7 |
| 3） Gripping rings: brass |
| 4） Coating –fusion Bonded epoxy to SABS1217, minimum thickness 250 microns, colors in RAL5005, RAL5015, RAL3009, RAL9005, RAL9011 or others/td> |
| 5） Bolts-steel to BS970 grade 070M20., carbon steel Grade 8.8, SS304 or SS316 Bolts available upon requests |
| 6） Bolt coating- galvanized |
| c. Gasket: |
| Rubber seal-E.P.D.M Grade E to BS2494 1990 Type W&D |
