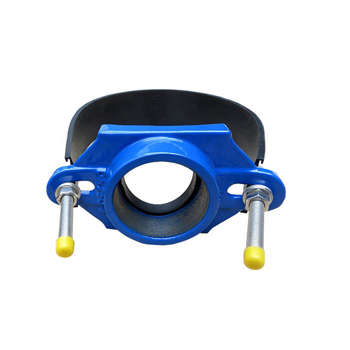

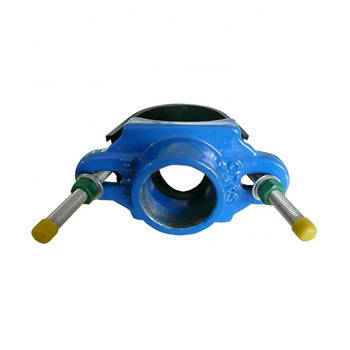

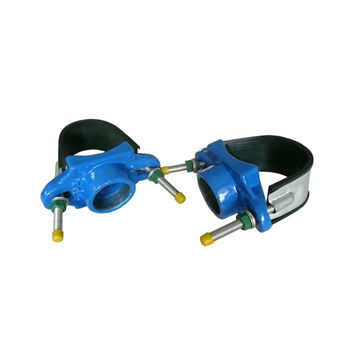

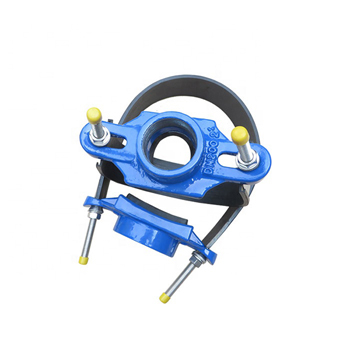

Tapping Saddle



  • Tapping Saddle
  • Tapping Saddle
  • Tapping Saddle
  • Tapping Saddle
  • Tapping Saddle

Description:

Size: DN50~DN300mm
Standard: ISO2531,EN545
Outlet: Thread(1/4″~2”)
Pressure: PN10/PN16
Body material: uctile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting; Gaskets are NBR or EPDM;
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316
Belts: SS304
Gaskets: NBR or EPDM
Connection Pipe: PVC pipe, PE pipe, AC pipe, Steel pipe and DI pipe
Package: Wooden cases and protection layer
Application: Tapping saddle is for connecting pvc pipe.the outlet can be thread to connect with pipes,valves etc.
