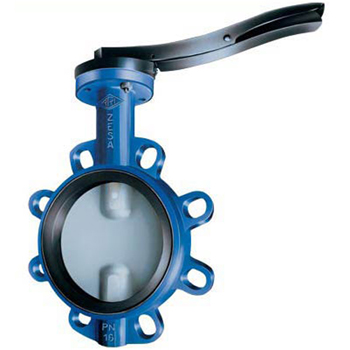

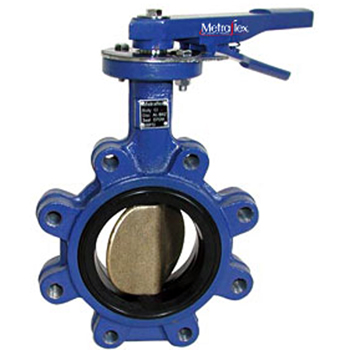

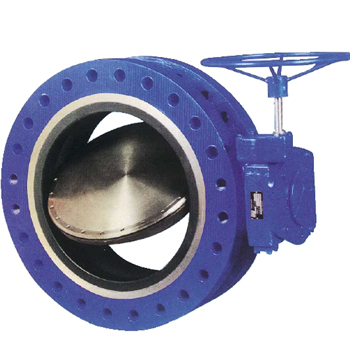

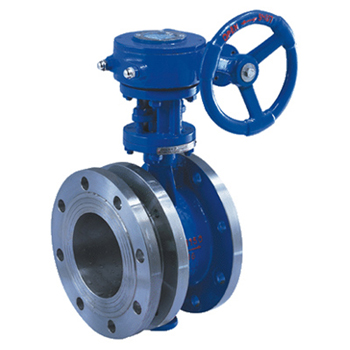

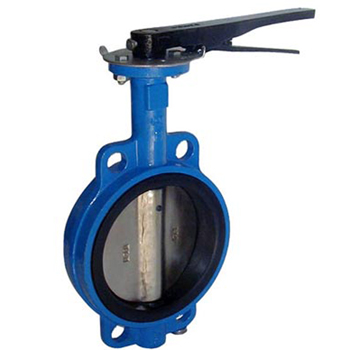

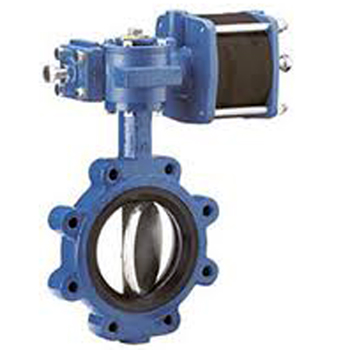

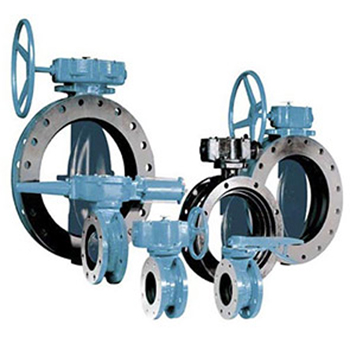

Product Information:
| Size: DN40-DN1200 |
| End flange: ANSI B 16.1, EN 1092, AS 2129 |
| Face to face: ANSI B 16.10; EN 558-1 Series 20 |
| Top flange: ISO 5211 |
| Normal Pressure: DN40-DN600 PN1.0/1.6MPa (150/200PSI) DN700-DN1200 PN1.0MPa (150PSI) |
| Body: CI/DI/WCB/ALB/CF8/CF8M |
| Disc: DI/ALB/Rubber lined Disc/ 1.2501/CF8M/1.4529/CF8/Hastelloy Alloy/Monel |
| Stem: 416/304/316/431/17-4PH |
| Seat: NR/Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM (NSF)/PTFE |
| Suitable Temperature: -40c~80c |
| Apply: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc |
